The Elite 5 PRO FB4 is a high-performance laser projector designed for lighting professionals working in larger indoor venues and smaller outdoor events. With a 5W full-color output, it’s an ideal solution for clubs, theaters, houses of worship, and gymnasiums accommodating up to 5,000 people. The projector is perfect for a variety of laser displays, including beam shows, text, graphics, and laser mapping. Using the latest laser diode technology, the Elite 5 PRO FB4 produces bright, uniform beams that remain sharp and clear even at long distances.

High-Performance Laser Output

The Elite 5 PRO FB4 uses 1,480mW red (638nm), 2,000mW green (520nm), and 1,600mW blue (450nm) diodes. This combination delivers a vivid and balanced output, creating dynamic visuals across a wide range of applications. The system supports 35,000 points per second scanning speed at 8° and a 50° scan angle, ensuring smooth, detailed effects for both simple beam shows and complex graphics. With 100kHz analog modulation, the projector provides smooth color transitions and precision control over fade-in and fade-out effects.

Advanced FB4 Control System

The FB4 control system is integrated into the Elite 5 PRO, allowing flexible control options. Users can manage the laser from a PC, lighting console, or in auto mode. The laser supports major protocols, including DMX, ArtNet, sACN, and timecode, making it easy to integrate into existing lighting setups. The QuickShow software provided with the projector allows users to design and program their own laser shows. Additionally, the MoboLaser app enables mobile control via Apple and Android devices, offering convenience during events.

Connectivity and Setup

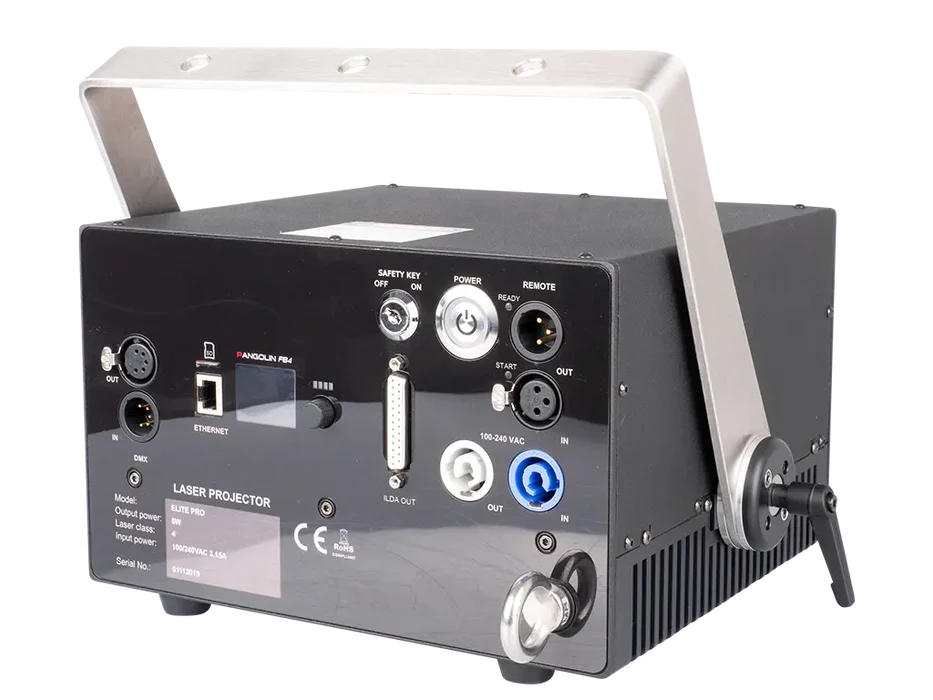

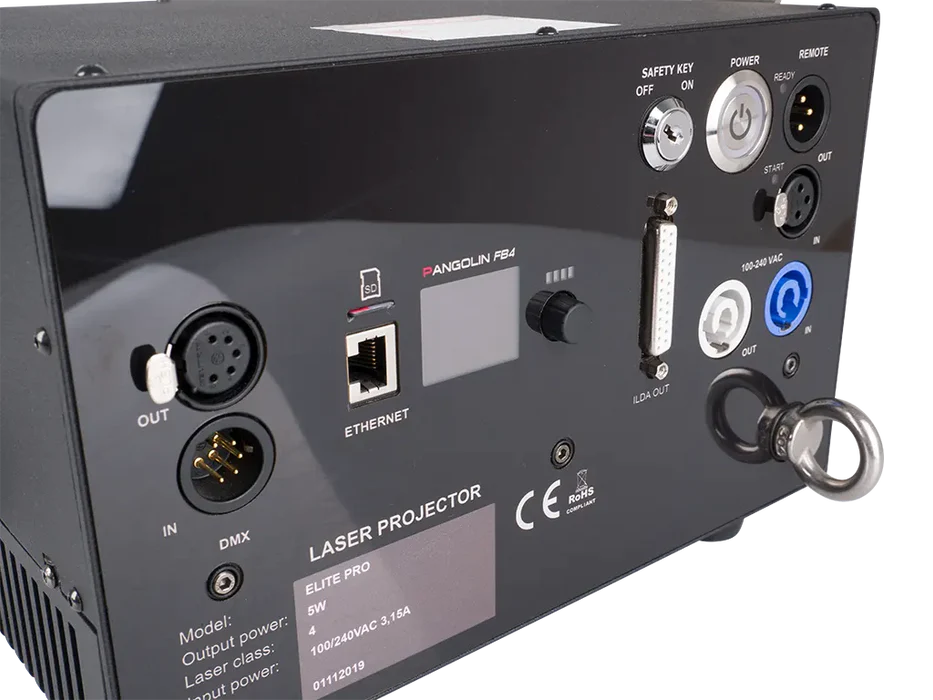

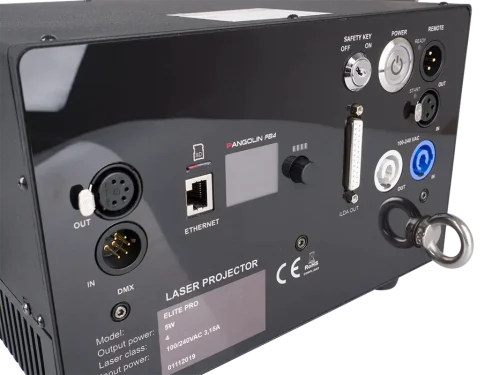

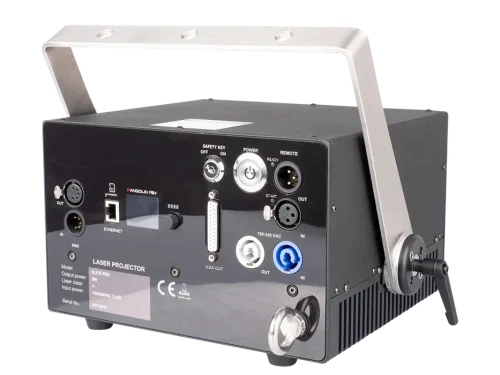

The Elite 5 PRO FB4 features various connection options, including Ethernet, DMX in/out, power in/out, ILDA out, and E-STOP connections. The built-in network switch enables users to synchronize multiple laser projectors for larger multi-laser displays. This versatility allows for seamless setup and management of more complex laser shows. The projector’s design also includes external adjustments for beam size, position, rotation, and color, allowing users to fine-tune their laser displays for specific events.

Safety and Reliability

The Elite 5 PRO FB4 complies with EN 60825-1 and FDA regulations, ensuring that the laser operates safely in both indoor and outdoor environments. Its key safety features include a keyed interlock, emission delay, magnetic interlock, scan-fail safety, and a mechanical shutter. These safety systems ensure secure operation, protecting both users and audiences during performances. The projector also includes external controls to allow for precise adjustments to ensure maximum safety and visual impact.

Key Features:

• 5W full-color output with bright, balanced beams.
• 35,000 points per second scanning speed for smooth, detailed effects.
• 100kHz analog modulation for seamless color transitions and control.
• Integrated FB4 control system with support for DMX, ArtNet, sACN, and QuickShow software.
• Mobile control through the MoboLaser app for Apple and Android devices.
• Built-in network switch for easy synchronization of multiple lasers.
• Fully compliant with EN 60825-1 and FDA regulations, featuring advanced safety systems.

What’s Included:

• Elite 5 PRO FB4 laser projector
• QuickShow software
• Heavy-duty flight case
• E-STOP remote with 10-meter cable
• Ethernet cable (10 meters)
• Power cable (1.5 meters)
• Safety interlock and keys
• Manual and quickstart guide

Why Choose the Elite 5 PRO FB4?

The Elite 5 PRO FB4 provides lighting professionals with a powerful and reliable solution for creating high-impact laser displays. Its 5W output, advanced control options, and safety features make it an ideal choice for larger venues and events. Whether you’re running a beam show, text and graphics display, or laser mapping, the Elite 5 PRO FB4 offers the flexibility, power, and control needed to create stunning visuals. With easy setup, flexible control options, and built-in safety features, this laser projector ensures high-quality performance at any event.
