Elite 30 PRO FB4 IP65 – High-Powered Professional Laser Projector

Introduction
The Elite 30 PRO FB4 IP65 is a powerful laser projector designed for professional use in large venues, capable of handling events with up to 40,000 people. With a guaranteed output of over 33 watts, this projector delivers bright, vibrant laser displays in any environment. Its IP65-rated housing ensures weather resistance, making it perfect for both indoor and outdoor use. Whether you’re running a large outdoor concert or a stadium-sized event, the Elite 30 PRO provides high-performance laser displays with reliability and precision.

Powerful and Vibrant Laser Output

Brilliant Color and Sharp Beams
The Elite 30 PRO uses RGB diodes to create stunning visual effects with 9W of red, 12W of green, and 12W of blue power. These high-quality diodes ensure a uniform beam profile that maintains clarity even over long distances. The advanced optical correction technology used in this system results in higher power density, meaning the lasers appear brighter than others in their class. The sharp beam profile makes it perfect for complex laser shows, text projections, and graphics.

Elite 30 PRO FB4 IP65 Flexible Control and Integration

FB4 Control for Versatile Operation
The Elite 30 PRO comes equipped with FB4 control, allowing flexible operation through Ethernet, DMX, ArtNet, and sACN. It can be controlled from a PC, a lighting console, or even via mobile apps for both Apple and Android devices. The system supports both live control and auto mode for pre-programmed shows, providing lighting designers with a wide range of options for integrating the laser into different setups. Additionally, the QuickShow software makes it easy to design and program laser shows, offering a wide range of creative possibilities.

Advanced Scanning and Safety Features

High-Speed Scanning for Complex Shows
The Elite 30 PRO FB4 IP65 features a 35,000 points per second scanning system with a 45° scan angle, ensuring smooth and detailed projections. It supports both beam shows and high-resolution graphics, making it suitable for a wide range of visual effects, from simple beam patterns to intricate text and logos. This projector is perfect for professional laser shows that require precise and complex visuals.

Comprehensive Safety Systems
Safety is a top priority with the Elite 30 PRO FB4 IP65. The system includes several built-in safety features such as emission delay, keyed interlock, scan-fail safety, and a mechanical shutter. These features ensure that the laser operates safely, even in large, crowded environments, providing peace of mind for event operators.

Elite 30 PRO FB4 IP65 Built to Last in Any Environment

Durable IP65-Rated Construction

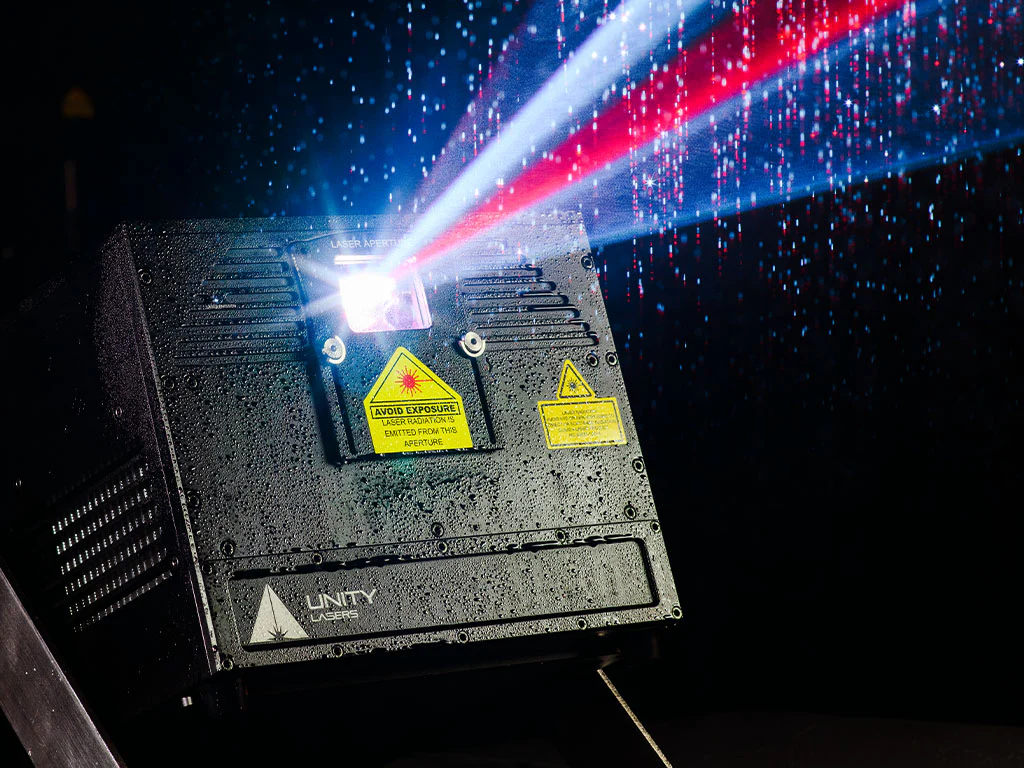

The IP65 rating ensures that the Elite 30 PRO FB4 is resistant to dust, water, and other environmental factors, making it ideal for outdoor events and installations. Its rugged design guarantees reliable performance in challenging weather conditions, while the advanced cooling system maintains optimal operation temperatures, ensuring longevity and consistent performance.

Key Specifications

• Output Power: >33 watts total (RGB)
• Red Power: 9,000 mW (637 nm)
• Green Power: 12,000 mW (525 nm)
• Blue Power: 12,000 mW (445 nm)
• Beam Size: 6 mm x 6 mm
• Beam Divergence: <1.0 mrad (full angle)
• Scanning Speed: 35,000 points per second at 8°
• Maximum Scan Angle: 45°
• Control Options: FB4 DMX (Ethernet, ArtNet, DMX, sACN)
• Modulation: Analog 100kHz
• Power Requirements: 100-240V, 50-60Hz
• Power Consumption: Max. 1200W
• Operating Temperature: -10°C to 45°C
• Weight: 32 kg
• Ingress Protection: IP65

Conclusion

The Elite 30 PRO FB4 IP65 is a powerful and reliable laser projector built for professional lighting designers working on large-scale events. With over 33 watts of output, flexible control options, and advanced safety features, it delivers vibrant, sharp, and precise laser effects. Its IP65-rated housing ensures durability in all weather conditions, making it an ideal choice for outdoor events and permanent installations. Whether you need complex laser graphics, text projections, or atmospheric effects, the Elite 30 PRO FB4 delivers the power and precision to make your event stand out.
