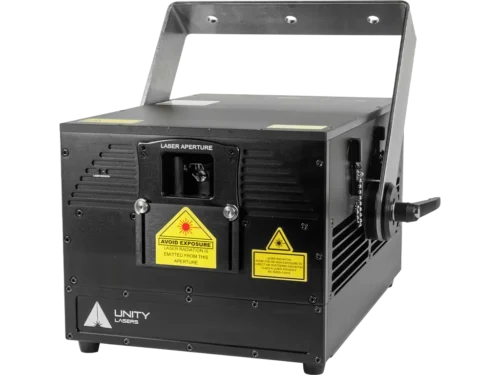

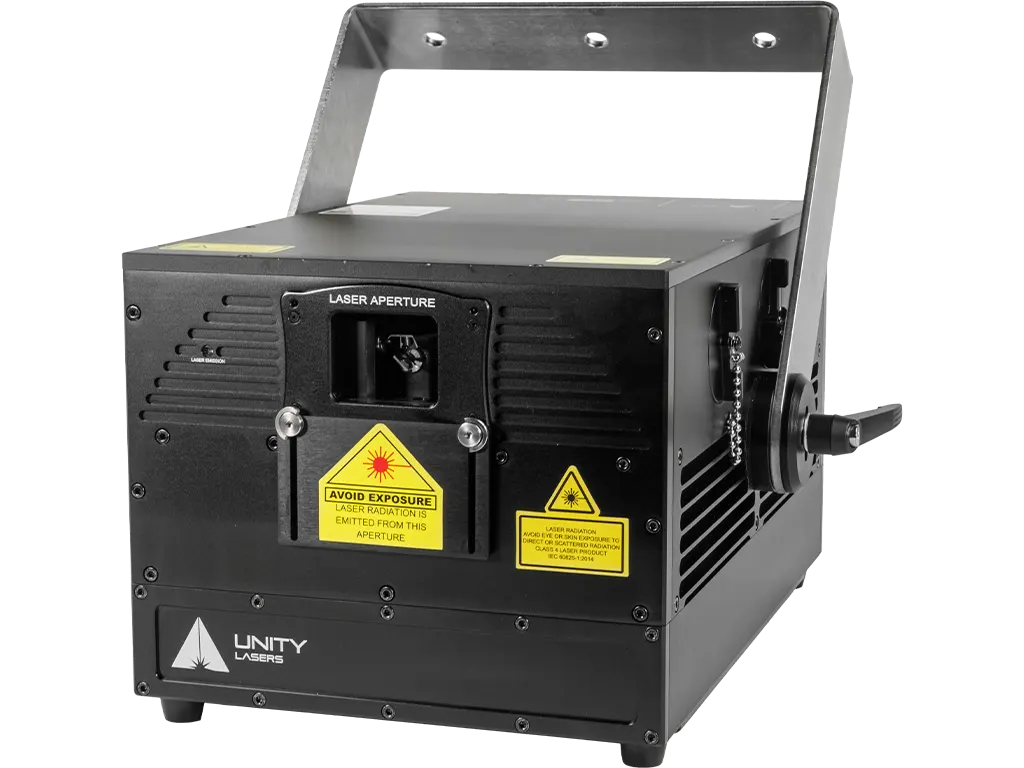

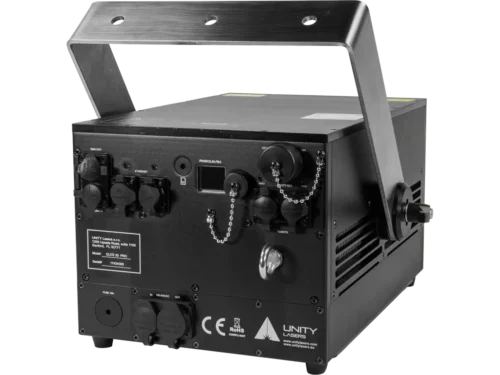

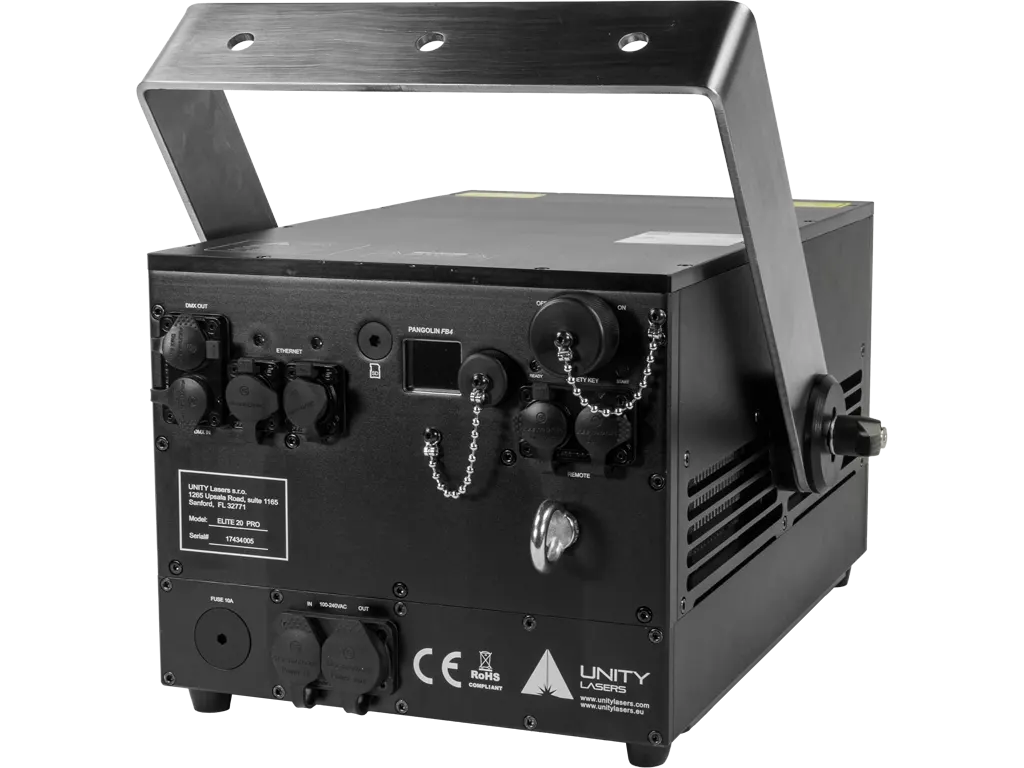

The Elite 20 PRO FB4 IP65 is a powerful laser projector designed for professional use in large venues. With an impressive 22W output, it delivers bright, vibrant laser beams in any environment. The IP65-rated housing ensures reliable performance in both indoor and outdoor conditions, making it ideal for concerts, festivals, and permanent installations. Built for demanding events, this projector offers flexibility and control, excelling in beam shows, graphics, and text projections.

Vivid Power and Precise Color

Bright Laser Output
The Elite 20 PRO delivers 22 watts of power, using RGB diodes to produce vivid colors. With 6W of red (637nm), 8W of green (525nm), and 8W of blue (445nm), the projector creates bright and clear laser displays. The system’s optical correction technology ensures a uniform beam profile, maintaining sharpness over long distances.

Sharp Beam Focus
The 6mm x 6mm beam size and <1.0mrad beam divergence result in clean, focused beams. This makes the Elite 20 PRO ideal for detailed laser effects and high-precision graphics. The projector’s high output and excellent color reproduction make it perfect for large venues like arenas and outdoor events.

Flexible Control Options

FB4 Control System
The Elite 20 PRO FB4 offers versatile control through Ethernet, ArtNet, DMX, sACN, and PC. It can be operated from a lighting console, a PC, or in auto mode for pre-programmed shows. The included QuickShow software enables easy programming for beam shows and complex visual effects, providing endless creative options for laser displays.

High-Speed Scanning
Equipped with a 35,000 points per second scanning system, the Elite 20 PRO delivers smooth projections. It supports a 45° scan angle, ensuring detailed laser graphics, text, and logos. The system’s advanced scanning technology ensures precise and high-quality laser shows, even with complex designs.

Elite 20 PRO FB4 IP65 Built to Last in Demanding Environments

Durable IP65 Construction
The IP65 rating makes the Elite 20 PRO FB4 resistant to dust, water, and extreme weather conditions. This durability ensures reliable performance for outdoor events or challenging environments. The projector’s robust build ensures it can handle harsh conditions while delivering consistent, high-quality shows.

Safety Features
Safety is built into the Elite 20 PRO. It includes features like emission delay, keyed interlock, magnetic interlock, and scan-fail protection. A mechanical shutter adds another layer of safety. These features ensure the laser operates safely in crowded or high-traffic areas.

Elite 20 PRO FB4 IP65 Key Specifications

• Output Power: 22 Watts total (RGB)
• Red Diode Power: 6,000 mW (637 nm)
• Green Diode Power: 8,000 mW (525 nm)
• Blue Diode Power: 8,000 mW (445 nm)
• Beam Size: 6mm x 6mm
• Beam Divergence: <1.0mrad full angle
• Scanning Speed: 35,000 points per second at 8°
• Maximum Scan Angle: 45°
• Control Options: FB4 DMX (Ethernet, ArtNet, DMX, sACN)
• Power Requirements: 100-240V/50-60Hz
• Power Consumption: Max 1000W
• Operating Temperature: -10°C to 45°C
• Ingress Rating: IP65 (dust and water-resistant)
• Dimensions: 431mm x 394mm x 230mm
• Weight: 26 kg

Conclusion

The Elite 20 PRO FB4 IP65 is a versatile and reliable laser projector built for large-scale events. Its 22W output, advanced scanning, and IP65-rated design make it suitable for both indoor and outdoor use. Whether you need to project beam shows, complex graphics, or laser text, this laser delivers precision and power in any environment.
