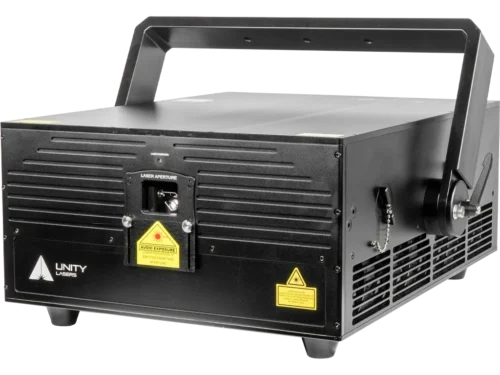

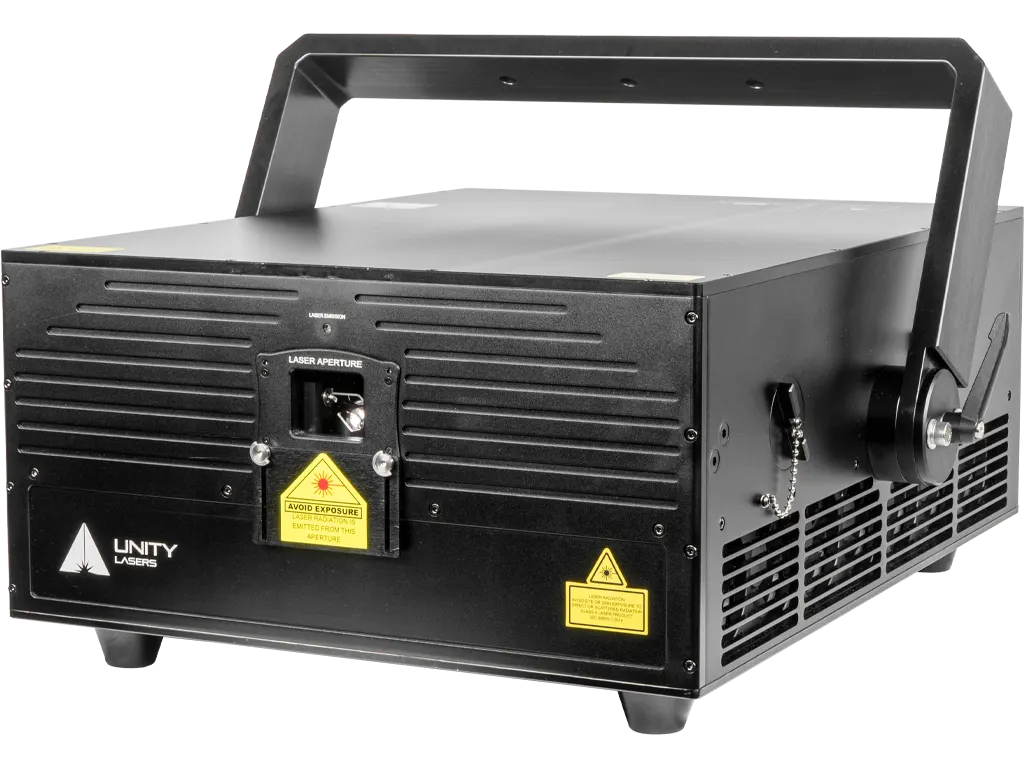

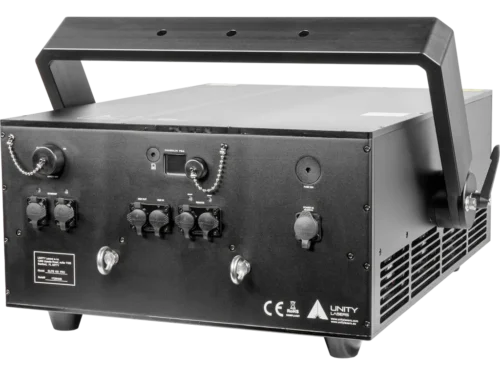

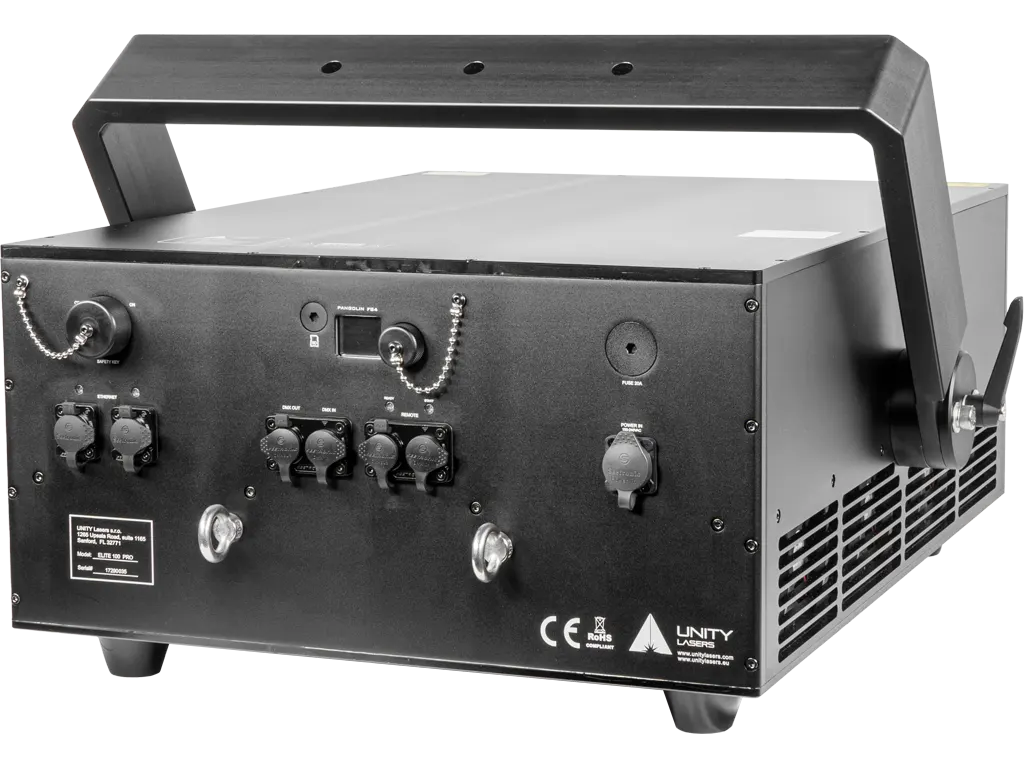

The Elite 120 PRO FB4 (IP65) is a high-performance outdoor laser projector. It is designed to create stunning atmospheric effects for large events, stadiums, and landmarks. With over 120W of optical output, this system delivers impressive visuals, visible from kilometers away. Its IP65-rated weatherproof housing ensures reliable performance in any environment, making it perfect for both indoor and outdoor use.

Elite 120 PRO FB4 (IP65) Built for Massive Impact

The Elite 120 PRO FB4 uses the latest laser diode technology. It offers 30,000mW red (638nm), 40,000mW green (525nm), and 50,000mW blue (450nm), providing bright and vibrant colors. This makes it ideal for large-scale beam shows and atmospheric effects. Its beam size of 7.5 x 7.5 mm ensures sharp, tight beams even over long distances, perfect for wide outdoor spaces.

Flexible Control with FB4 Integration

The FB4 control system offers unmatched versatility. You can control the projector from a PC, lighting console, or mobile app (available for both Apple and Android). It supports major lighting protocols such as DMX, ArtNet, sACN, and timecode, making it easy to integrate into any multimedia setup. The included QuickShow software allows users to design custom laser shows, from simple beams to complex graphics and logos.

Multiple projectors can be connected via Ethernet, ArtNet, or DMX for synchronized multi-projector shows. The built-in network switch makes deployment fast and easy, ensuring smooth operation for large-scale events.

Elite 120 PRO FB4 (IP65) Durability and Precision

The IP65-rated weatherproof housing protects the Elite 120 PRO FB4 from dust and water, making it ideal for outdoor use in tough conditions. Its rugged build guarantees reliable long-term performance, making it a great investment for event professionals.

The advanced laser diode drivers ensure smooth analog modulation, producing perfect fade-in and fade-out effects. With a scanning speed of 25,000 points per second at 8°, the laser projects high-resolution beam shows and smooth graphics. The 40° scan angle provides wide coverage, perfect for filling large venues with vibrant laser light.

Safety and Convenience

The Elite 120 PRO comes with several safety features, including a keyed interlock, emission delay, mechanical shutter, and scan-fail safety. This ensures safe operation at any event. External adjustments for size, position, rotation, and colors allow users to fine-tune their displays easily.

It comes packaged with a heavy-duty flight case for easy transportation. The system includes essential accessories like an E-stop box, E-stop cable, Ethernet cable, and power cable, making setup quick and simple.

Elite 120 PRO FB4 (IP65) Key Specifications

• Total Optical Output: 120W
• Red Diode Power: 30,000mW (638nm)
• Green Diode Power: 40,000mW (525nm)
• Blue Diode Power: 50,000mW (450nm)
• Beam Size: 7.5mm x 7.5mm
• Beam Divergence: <1.2mrad (Full Angle)
• Scanning Speed: 25,000 points per second at 8°
• Maximum Scan Angle: 40°
• Control System: FB4 DMX (Ethernet, ArtNet, DMX, sACN)
• Modulation: Analog 100kHz
• Power Requirements: 100-240V/50-60Hz
• Power Consumption: Max 1600W
• Ingress Protection: IP65
• Weight: 58kg
• Operating Temperature: -10°C to 45°C

Conclusion

The Elite 120 PRO FB4 (IP65) is a high-performance laser projector built for large-scale events. Its 120W output, IP65-rated construction, and FB4 control system make it perfect for creating stunning visuals at concerts, festivals, and outdoor shows. This laser projector offers the flexibility, power, and reliability you need to captivate any audience.
