E-Stop Splitter 12
$1,713.00
| Power requirements [V]: | 100-230, 50Hz |
| Consumption: | max. 20VA |
| Outputs: | Optically isolated from each other, each output is ESD protected and is “power cross safe”, each output can control an unlimited number of Kvant laser projectors. |
| Max. control distance: | Up to 1000 meters with a high-quality signal cable. |
| Ingress protection rating: | IP 20 |
| Operation temperature [°C]: | 0-40 |
| Housing colour: | black |
| Weight [kg]: | 2 |
| Size [mm]: | 483 x 45 x 140 [WxHxD] |
| Required rack space: | 1U |
Product code: N/A
Social share:
Item description

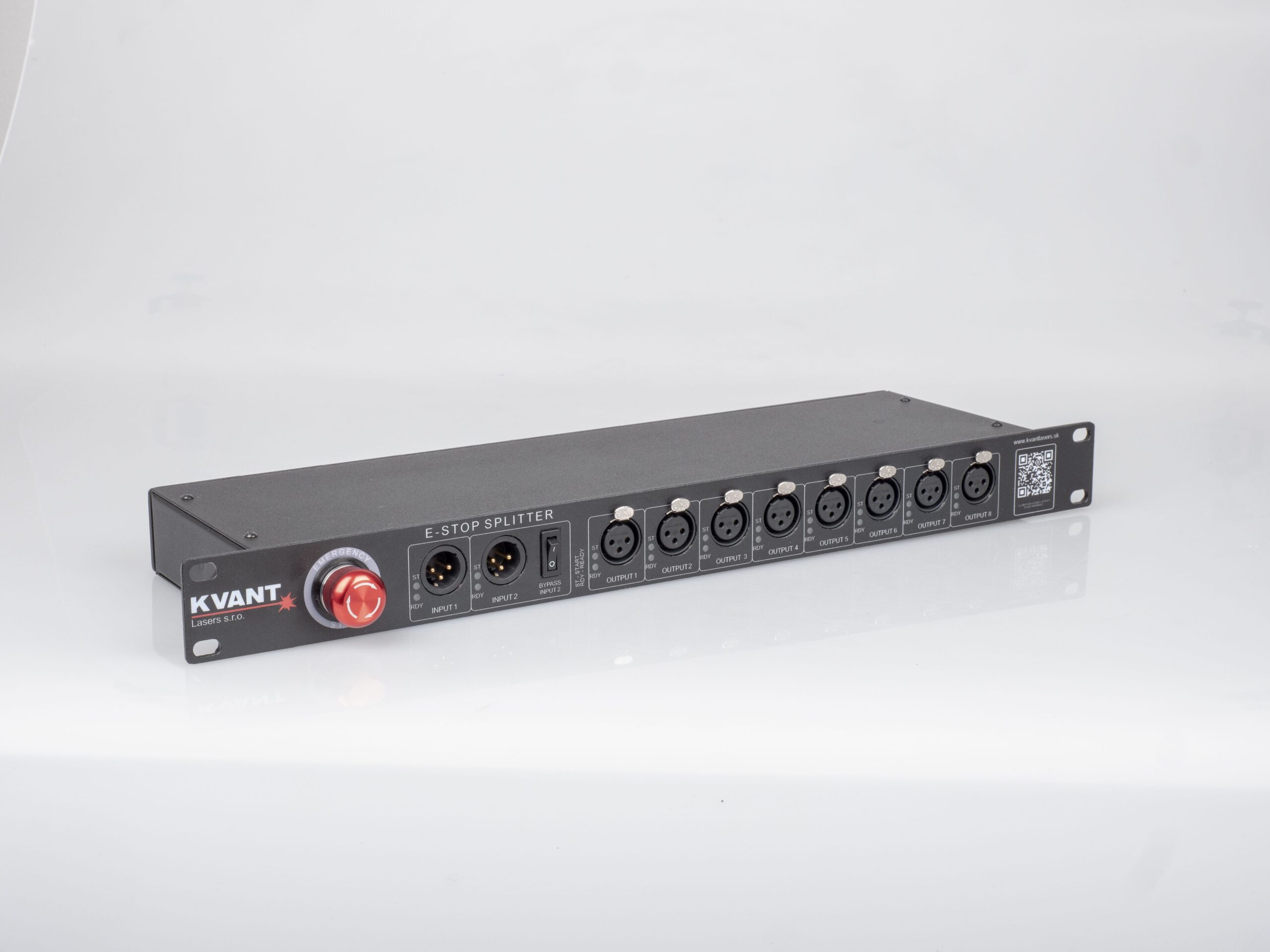

The E-Stop Splitter 12 from KVANT enhances safety by managing the emergency stop (E-STOP) function across multiple laser projectors. You can control up to 12 laser systems simultaneously, ensuring that all connected devices shut down safely with a single E-STOP button in case of emergencies. This tool is ideal for professionals handling complex setups in large-scale events such as concerts, festivals, or corporate shows, offering an efficient and reliable safety solution.
Key Features:
- Control Up to 12 Laser Systems: The E-Stop Splitter 12 lets you manage up to 12 laser projectors from one E-STOP button. This central control allows for instant shutdowns in case of malfunctions or safety concerns.

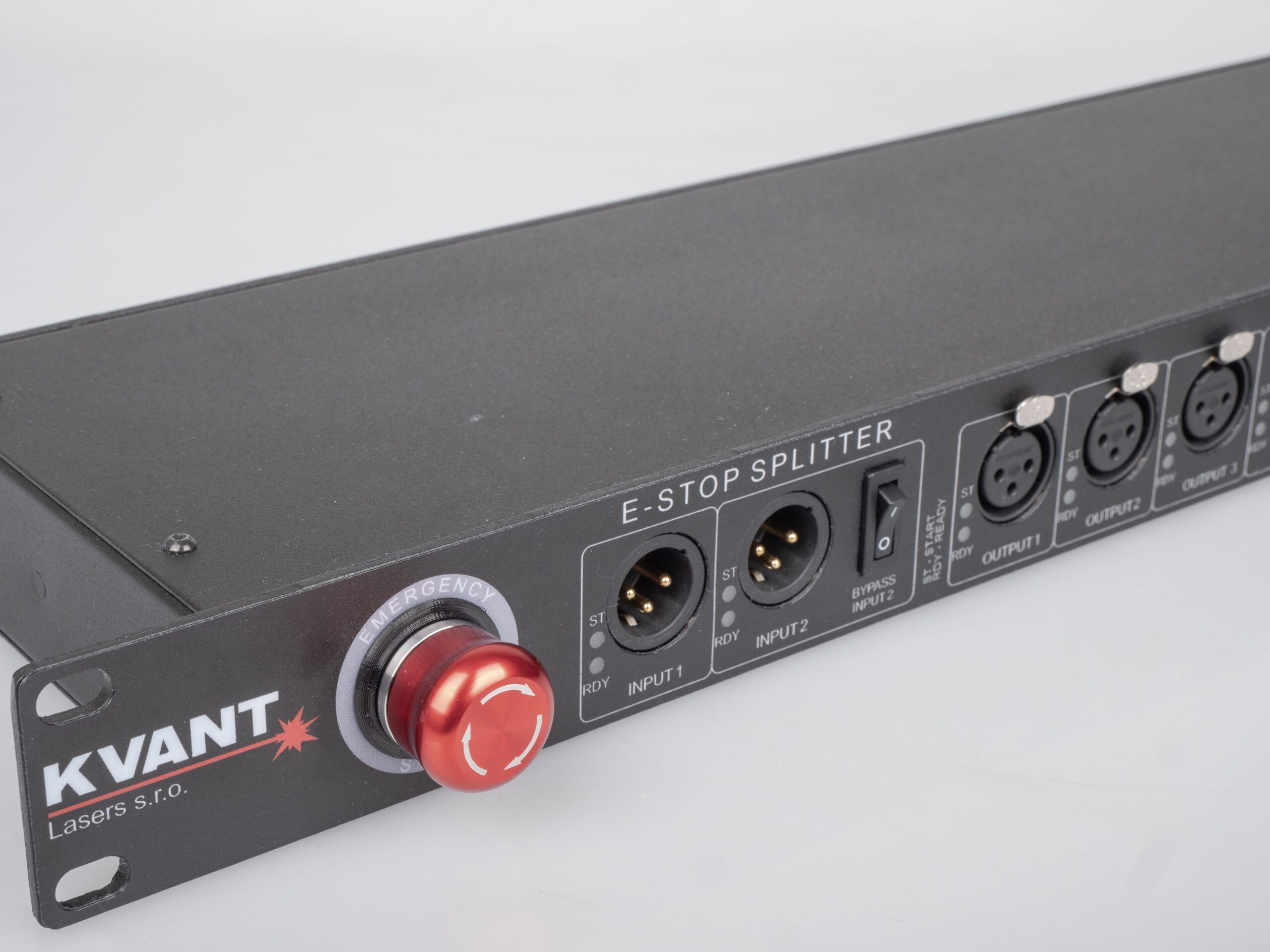

- Dual E-STOP Inputs: It includes two E-STOP remote inputs, giving you control from two separate positions. This feature works perfectly for large setups where you need emergency stop access at multiple locations, such as front-of-house (FOH) and stage.
- Parallel Signal Distribution: The splitter distributes the E-STOP signal in parallel across all connected lasers, enabling the addition of more splitters to control even more projectors.
- Group Control Capability: You can manage laser groups independently, adding flexibility to how you route the E-STOP signal within your system.
Technical Specifications:

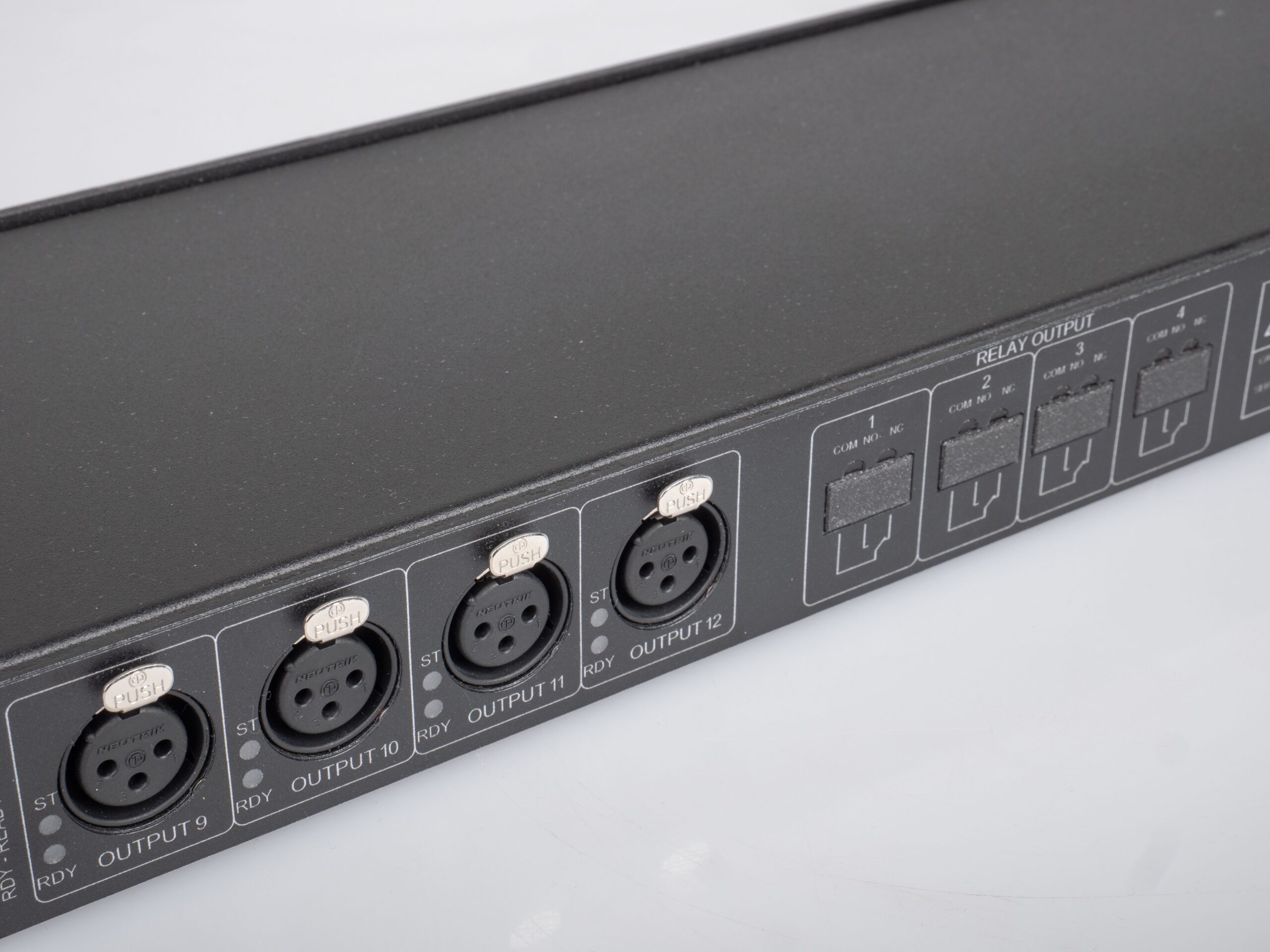

- Number of Outputs: 12 output ports allow you to control up to 12 laser projectors.
- E-STOP Remote Inputs: Two inputs let you position two separate E-STOP buttons (FOH and stage).
- Signal Distribution: The parallel signal distribution connects more splitters or lasers, allowing for system expansion.
- Compatibility: Fully compatible with all KVANT laser systems.
The E-Stop Splitter 12 is an essential tool for enhancing safety in laser shows. It allows you to instantly shut down all connected lasers, protecting both operators and audiences. With multiple remote E-STOP button connections, you gain added control and flexibility, particularly in large-scale venues.
Whether you’re running a concert, corporate event, or festival, the E-Stop Splitter 12 ensures your laser system’s safety and compliance.
